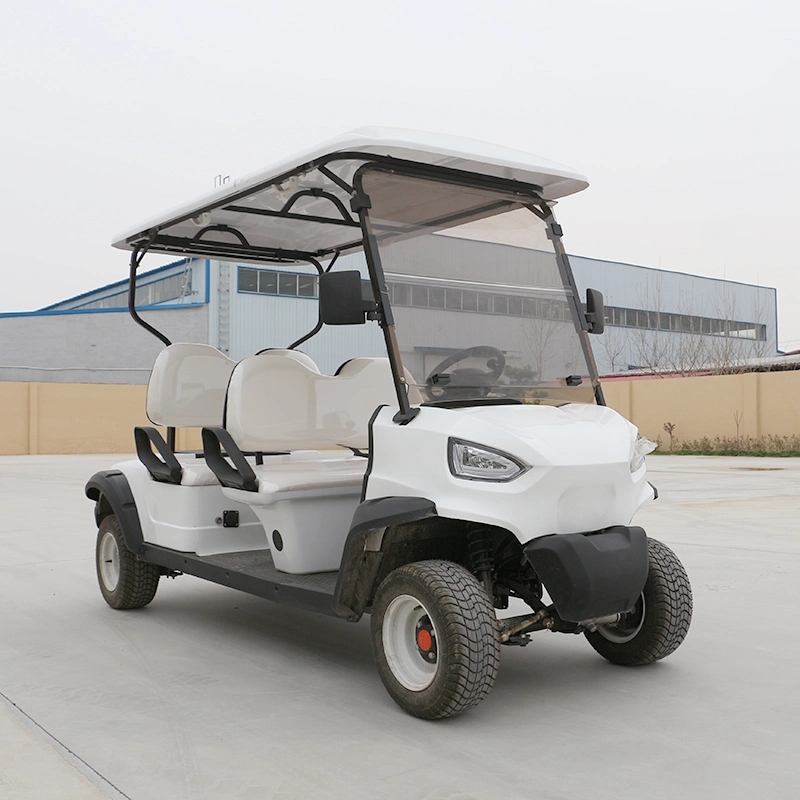

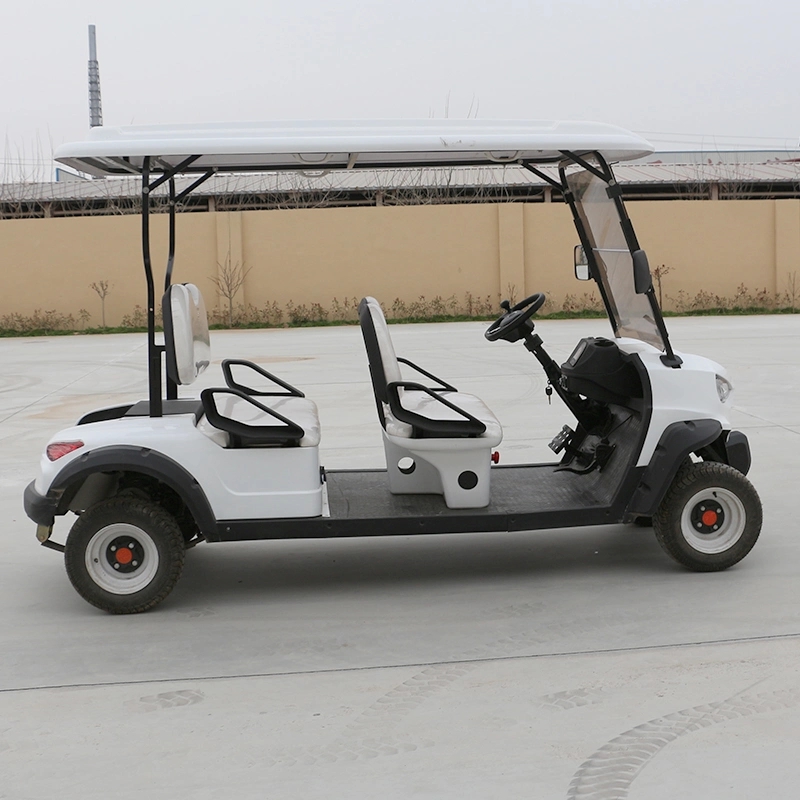

An environmentally friendly passenger vehicle designed and developed for golf courses.
It can also be used in resorts, villas, garden hotels, tourist attractions, etc.
| Product Specifications | ||||
| Electric System | Electrical Control | 60 V Controller(Enpower brand) | ||
| Battery | 60V(100AH Chilwee Brand Lead Battery) | |||
| Motor | 3.5 KW AC motor(Depuda Brand) | |||
| Charger | Intelligent vehicle charger | |||
| Charging Time | 6-8 Hours (discharge rate is 80%) | |||
| Technical Parameters | Input Charging Voltage | 220V | ||
| Length*Width*Height (mm) | 2350*1250*1850(width doesn't include the reflector width) | Braking Distance | ≤5m | |
| Vehicle Weight | 490kg | Rated Crew | 2 people | |
| Vehicle Load | 800kg | Max. Speed | 25-35 km/h | |
| Front and Rear Wheelbase | 990/1000mm | Max. Grade Ability | 20% | |
| Wheel Base | 1720mm | Min. Turning Radius | 4.5 m | |
| Min.Ground Clearance | 120mm | Endurance Mileage | 60-80 km | |
| Body System | Seats | 1 row 2 seats(leather+high resilience PUbeigecolor) | ||
| Vehicle Body | Automotive engineering material injection molding shellsteel structure frame automobile paint | |||
| Rearview Mirror | Manual external rearview mirror | |||
| Lighting and Signals | Combination headlight,tun light,combination rear taillight,brake light,electric horm | |||
| Switch | 2 keys, 1 start switch,light combination switchpower off switch | |||
| Frame | Steel structure frame | |||

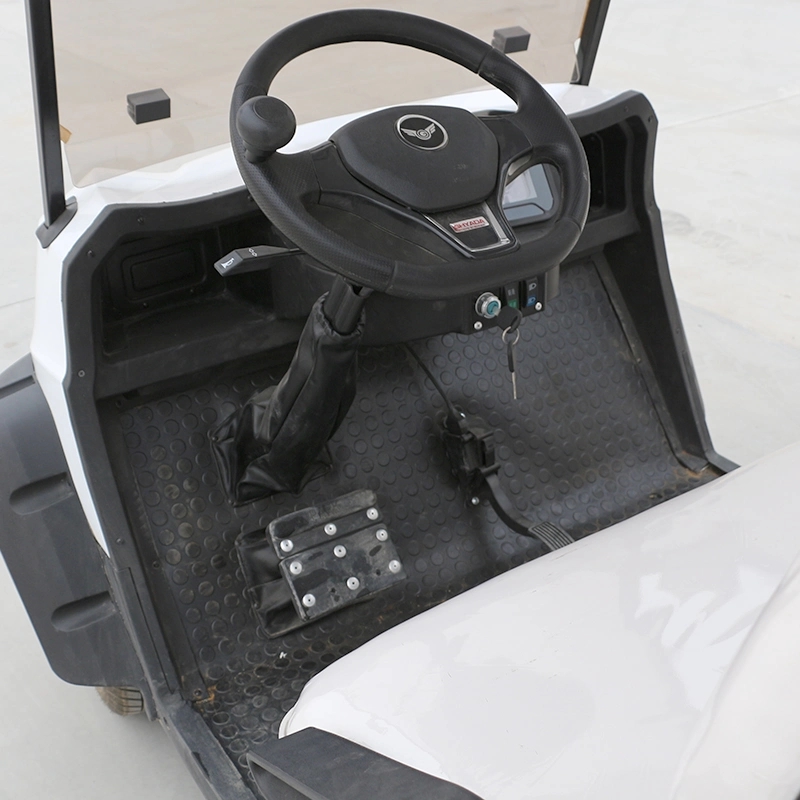

| Steering Wheel | Polyurethane foam steering wheel | |||
| Chassis System | Power Transmission System | Infinitely variable speed system | ||
| Steering System | Rack and pinion directional machine | |||

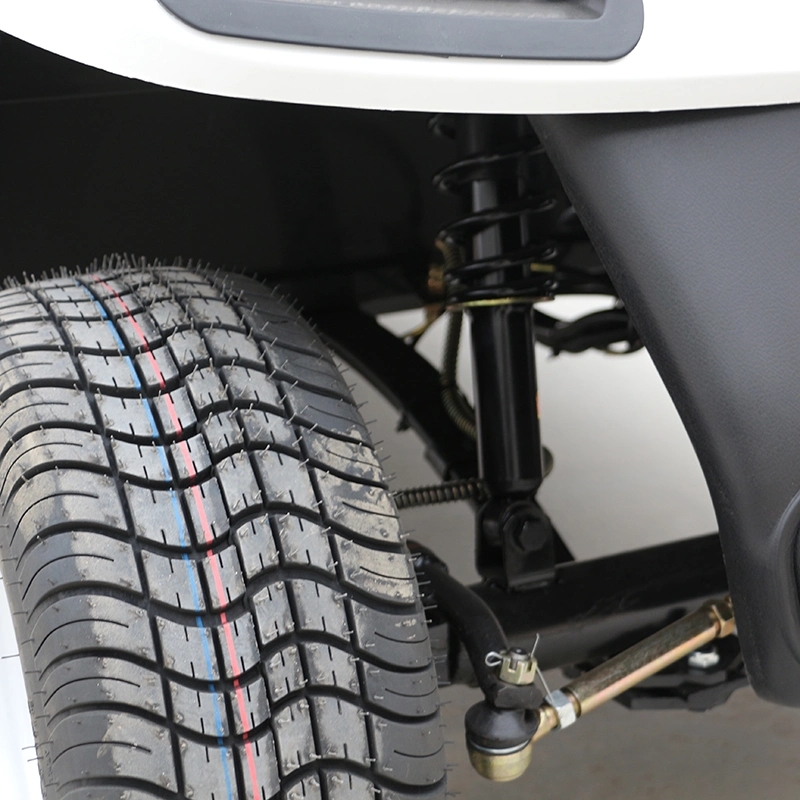

| Front and Rear Axle | Integral rear axle +high strength leaf spring | |||
| Braking System | Drum hydraulic brake | |||
| Wheel | Special tyre for golf car 205 50-10 | |||
An environmentally friendly passenger vehicle designed and developed for golf courses.
It can also be used in resorts, villas, garden hotels, tourist attractions, etc.
| Product Specifications | ||||
| Electric System | Electrical Control | 60 V Controller(Enpower brand) | ||
| Battery | 60V(100AH Chilwee Brand Lead Battery) | |||
| Motor | 3.5 KW AC motor(Depuda Brand) | |||
| Charger | Intelligent vehicle charger | |||
| Charging Time | 6-8 Hours (discharge rate is 80%) | |||
| Technical Parameters | Input Charging Voltage | 220V | ||
| Length*Width*Height (mm) | 2350*1250*1850(width doesn't include the reflector width) | Braking Distance | ≤5m | |
| Vehicle Weight | 490kg | Rated Crew | 2 people | |
| Vehicle Load | 800kg | Max. Speed | 25-35 km/h | |
| Front and Rear Wheelbase | 990/1000mm | Max. Grade Ability | 20% | |
| Wheel Base | 1720mm | Min. Turning Radius | 4.5 m | |
| Min.Ground Clearance | 120mm | Endurance Mileage | 60-80 km | |
| Body System | Seats | 1 row 2 seats(leather+high resilience PUbeigecolor) | ||
| Vehicle Body | Automotive engineering material injection molding shellsteel structure frame automobile paint | |||
| Rearview Mirror | Manual external rearview mirror | |||
| Lighting and Signals | Combination headlight,tun light,combination rear taillight,brake light,electric horm | |||
| Switch | 2 keys, 1 start switch,light combination switchpower off switch | |||
| Frame | Steel structure frame | |||
| Steering Wheel | Polyurethane foam steering wheel | |||
| Chassis System | Power Transmission System | Infinitely variable speed system | ||
| Steering System | Rack and pinion directional machine | |||
| Front and Rear Axle | Integral rear axle +high strength leaf spring | |||
| Braking System | Drum hydraulic brake | |||
| Wheel | Special tyre for golf car 205 50-10 | |||
Different kinds of products are available in our company. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
